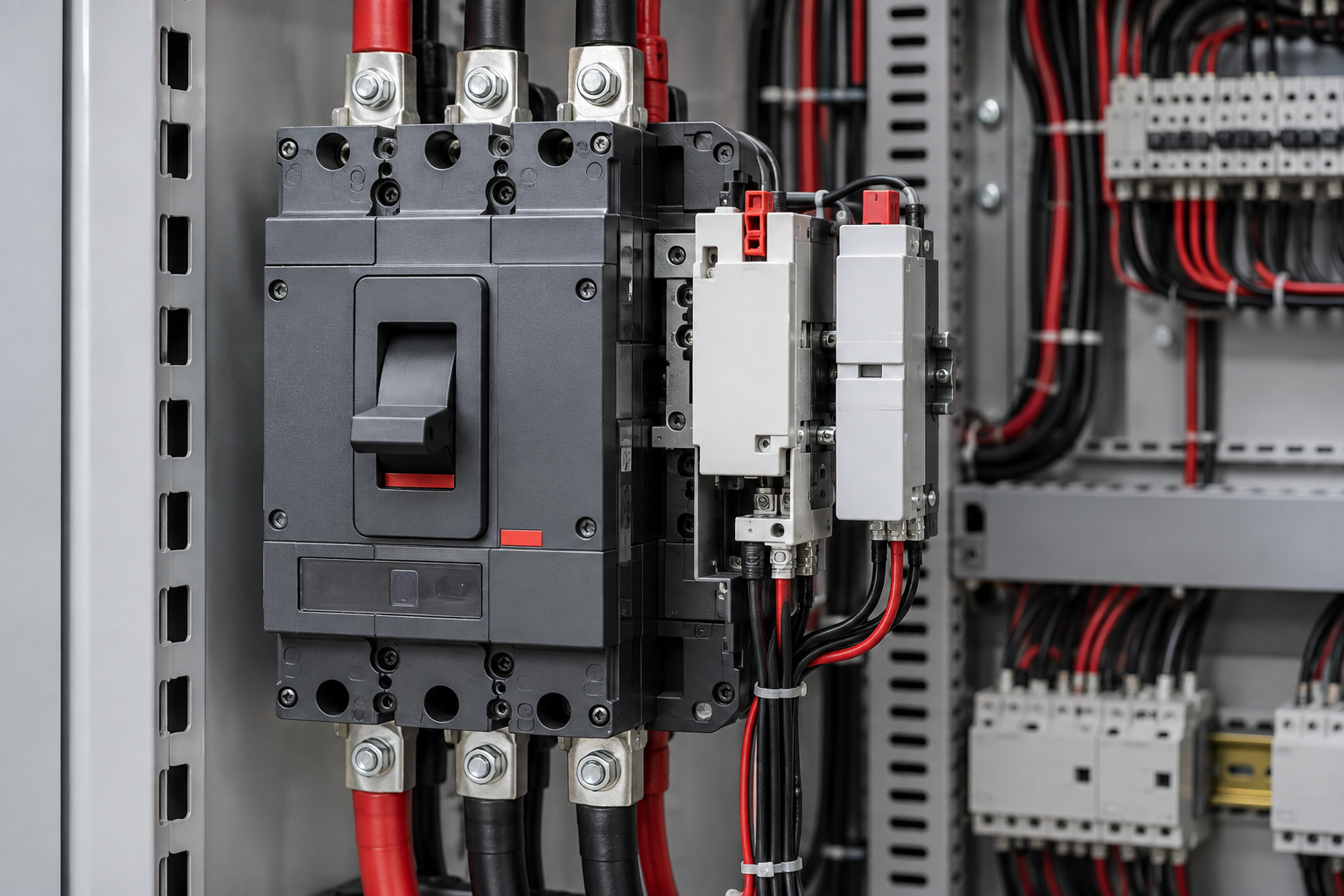

Quick technical guide: This article explains shunt trip vs undervoltage release: choosing the right circuit breaker accessory for panel builders, contractors, maintenance teams and industrial electrical buyers.
A circuit breaker does not always trip because of overload or short circuit.
In industrial panels, a breaker may need to open because somebody presses a remote stop button, a fire-alarm system sends a command, a control system detects an abnormal condition, or the control supply disappears.
Those functions can involve accessories fitted to the breaker.
Two commonly confused options are the shunt trip and undervoltage release (UVR).
Both can open a breaker electrically. The important difference is what causes them to act.
What is a shunt trip?
A shunt trip is an electrically operated breaker accessory.
When the correct control voltage is applied to its terminals, it operates the breaker mechanism and opens the main contacts.
Schneider Electric describes a shunt trip as an optional accessory that mechanically trips the breaker when external power is applied to the shunt-trip terminals.
Schneider Electric
Think of it as:
Control command arrives → shunt trip energizes → breaker opens
This makes it useful where a breaker needs to be opened from somewhere other than its front handle.
Where does shunt-trip power come from?
The shunt trip requires a control-power source.
That source is separate from the breaker accessory itself. Schneider specifically notes that the power required by its shunt-trip accessory must come from an external source.
Schneider Electric
That source could form part of an AC or DC control system depending on the breaker and accessory being used.
This leads to an important purchasing point.
"Shunt trip for a 250 A breaker" is incomplete.
The shunt-trip coil voltage also has to be specified.
The main breaker current rating does not tell you what voltage its accessory requires.
What happens if shunt-trip control power disappears?
This is where a shunt trip differs fundamentally from an undervoltage release.
A conventional shunt trip needs an electrical command to operate.
If its control supply has already failed, the accessory may no longer be able to generate the intended trip command.
That behaviour can matter in applications where losing control power itself is supposed to open the breaker.
For that type of requirement, an undervoltage release may be more appropriate.
What is an undervoltage release?
An undervoltage release works from the opposite control philosophy.
During normal operation, the UVR is energized.
If its supply voltage falls sufficiently, the accessory trips the breaker.
Schneider summarizes the distinction clearly: applying control voltage to a shunt trip opens the breaker, while removing control voltage from an undervoltage trip causes the breaker to open.
Schneider Electric
So the basic logic becomes:
Healthy control voltage present → breaker can remain closed
Control voltage lost or sufficiently reduced → UVR operates → breaker opens
That behaviour is useful where loss of control voltage should move the system toward an open state.
Why can a UVR be described as fail-safe?
Consider a control circuit where a remote emergency-opening command depends on a wire running across a machine.
With an energize-to-trip shunt circuit, a broken control conductor could prevent the trip signal from reaching the accessory.
A UVR-based arrangement can behave differently because interruption of its continuously energized circuit causes the breaker to open.
Schneider specifically identifies undervoltage releases as suitable for fail-safe emergency-stop arrangements on applicable breakers.
Product Info
That does not mean installing any UVR automatically creates a compliant machine emergency-stop system. Safety functions require a complete risk assessment and appropriate architecture.
The point is narrower: the accessory's operating principle can make loss of its control supply produce an opening action.
A UVR does not trip at exactly zero volts
"Undervoltage" does not necessarily mean the voltage must disappear completely.
The release operates according to voltage thresholds defined for that product.
For Schneider's ComPact NSX MN accessory, for example, the manufacturer states that the breaker trips below 35% of the release's rated voltage; between 35% and 70%, tripping is possible but not guaranteed. Schneider also specifies the voltage condition required before reclosing becomes possible.
Product Info
ABB similarly documents undervoltage-release products that open their associated breaker when monitored voltage falls below a defined percentage of the accessory's rated value.
Empower
These figures illustrate product behaviour. They are not universal UVR specifications.
Always use the documentation for the exact accessory.
Why can a breaker with UVR refuse to close?
This can look like a mechanical breaker failure.
A technician resets the handle, attempts to close the breaker, and it will not remain closed.
If an undervoltage release is installed, check its control supply.
Some UVRs deliberately prevent breaker closure while the accessory voltage is absent or too low.
For Schneider's MasterPact MTZ MN release, breaker closing is prevented when the release has no supply; closing becomes enabled again only after its voltage recovers to the manufacturer's specified level.
Product Info
ABB also documents UVR arrangements that prevent breaker contact closure until the monitored voltage has recovered sufficiently.
Empower
Before replacing a breaker that "won't latch," identify its internal accessories and measure the appropriate control voltage.
Shunt trip and UVR solve different control problems
A useful way to choose between them is to start with the desired behaviour.
Suppose a building-management system needs to open a breaker when it sends an active electrical command.
An energize-to-trip shunt release may suit that control philosophy.
Now consider a machine where loss of the control circuit itself is intended to force the breaker open.
An undervoltage release may suit that requirement better.
Neither device is universally superior.
The correct choice depends on what the electrical system should do during both a command and a loss of control power.
Remote trip is not the same as overcurrent protection
A shunt trip or UVR should not be confused with the breaker's overload and short-circuit trip functions.
The main trip unit monitors electrical conditions according to the breaker's protection design.
The voltage release gives another system a way to operate the breaker mechanism.
For example:
Overload detected by trip unit → breaker opens
and:
External control command energizes shunt trip → breaker opens
can lead to the same final breaker state while originating from completely different conditions.
This distinction matters when troubleshooting unexplained trips.
How can a fire-alarm interface use a shunt trip?
Remote opening is one reason shunt trips appear in building and industrial distribution designs.
An external system can operate an appropriate interface, which then supplies the specified control voltage to the breaker's shunt-trip circuit.
The exact fire-alarm, life-safety and electrical requirements depend on the installation and jurisdiction.
A panel builder should therefore work from the approved control design rather than assuming that every fire-alarm interface should be wired directly to a breaker coil.
Check the required isolation, interface relays, supervision and control voltage as specified by the project design.
Why an interposing relay may be useful
The system producing the trip command may not have contacts suitable for directly switching the breaker accessory.
An interposing relay can separate the command source from the breaker operating circuit and provide the required contact arrangement.
Siemens' current Reyrolle 7PG17 range, for example, is specifically intended for auxiliary and tripping duties, remote switchgear operation and trip-circuit supervision.
Siemens
Whether an interposing relay is required depends on the actual control system, coil characteristics and approved circuit design.
Do not add one automatically.
Can one breaker have both a shunt trip and UVR?
Sometimes accessory positions impose physical limitations.
This is highly product-specific.
For example, Schneider states that its PowerPacT H, J, L, M, P and R frame breakers accept either a shunt trip or an undervoltage release in the relevant accessory position—not both simultaneously. The manufacturer's FAQ was last modified January 5, 2026.
Schneider Electric
ABB documentation for some breaker families similarly notes accessory combinations where a second shunt-opening release occupies the position otherwise used by the undervoltage release.
ABB Library
Never assume that because two accessories appear in a catalogue they can both be fitted to the same breaker at the same time.
Check the breaker's accessory compatibility table.
Delayed undervoltage release: why would anyone want one?
Industrial supplies can experience brief voltage dips.
If every short disturbance immediately opens a critical breaker, unnecessary process interruptions can result.
Some breaker families therefore offer delayed undervoltage operation.
ABB currently lists a delayed undervoltage accessory for compatible modular protection devices that waits approximately 200 ms before operating after the voltage-drop condition is detected.
ABB Group
Schneider also documents time-delay units for applicable MN undervoltage releases to prevent nuisance operation from short transient dips.
Product Info
The delay required for a real project must come from the electrical design and exact accessory documentation rather than copying either manufacturer's example.
AC or DC control voltage?
Breaker releases can be available for different control voltages and supply types.
ABB, for example, publishes UVR accessories in multiple AC and DC voltage versions.
Empower
+1
The accessory's voltage must match the control supply.
A 24 VDC release and a 230 VAC release may serve the same broad function while being electrically incompatible.
This is why a photograph of the breaker front alone may not be enough for a replacement order.
The accessory label matters too.
Why a shunt trip may fail during testing
If a breaker does not open when the remote-trip button is pressed, do not immediately condemn the breaker.
Work through the control circuit.
Verify the correct voltage reaches the shunt-trip terminals when the command is given. Check the external control-power source, wiring, relay contacts and terminal connections.
Then confirm that the installed accessory is actually rated for that control voltage.
Schneider's wiring guidance states the operating distinction plainly: control voltage applied across the shunt-trip terminals causes the breaker to trip.
Schneider Electric
If the correct command reaches a compatible accessory but it still fails to operate, investigation can then move toward the accessory or breaker mechanism.
Why a UVR may cause repeated unexplained trips
A UVR is deliberately sensitive to its own control supply.
If that supply has loose connections, intermittent wiring, a failing control transformer or significant voltage dips, the breaker may open even though there is no overload on the main power circuit.
This is a useful troubleshooting distinction.
Measure the UVR supply during the event rather than concentrating only on the breaker's main current.
If the release is doing exactly what its control voltage tells it to do, replacing the MCCB will not solve the underlying problem.
What to record before replacing a breaker accessory
For an existing installation, collect:
Breaker manufacturer and complete model
Frame and breaker type
Existing accessory part number
Shunt trip or undervoltage release
Accessory rated voltage
AC or DC supply
Control-circuit diagram
Available accessory position
Other internal accessories already fitted
Required operating behaviour
If the existing accessory has failed, inspect the control circuit before fitting the replacement.
Applying the wrong voltage to a new release can simply repeat the failure.
What to send when requesting breaker accessories from INTEKS
A useful enquiry should identify both the breaker and the control requirement.
For replacement work, send clear photographs of the breaker label, existing accessory [Truncated]

. If a real supply problem is being hidden, the machine remains exposed to that condition for longer.
Some faults may bypass the delay
A multifunction relay does not necessarily treat every abnormal condition identically.
Schneider's RM22TR33 documentation provides a useful example. Phase loss and incorrect sequence are treated as critical conditions and cause immediate output operation, while configured timing can apply to overvoltage and undervoltage conditions.
Schneider Electric
That behaviour is valuable to understand during commissioning.
An engineer expecting every fault to wait for the same timer could otherwise interpret correct relay operation as a fault.
Check which monitored functions use the delay on the exact device.
What does the relay output actually control?
Most phase monitoring relays provide one or more control contacts.
Those contacts can be incorporated into another circuit.
For example, the output may enable a contactor coil, signal a PLC input, operate an alarm relay or participate in an interlocking circuit.
Phoenix Contact's current MR-ES-PH-400 uses a changeover output contact.
Phoenix Contact
Siemens' documented 3UG4513 network-monitoring relay uses two changeover contacts.
Siemens Ausschreibungstexte
Again, these are product examples rather than INTEKS specifications.
The important point is that the monitoring relay is generally a control device, not the component intended to carry the main motor current.
Output-contact rating still matters
A monitoring relay's output contact has an electrical rating.
If that contact directly switches another relay or contactor coil, the load and utilization conditions need to be compatible.
Do not assume that because the monitoring relay measures a 400 V three-phase supply, its output contact can switch any 400 V load.
The measuring input and control output are separate specifications.
For example, Phoenix Contact publishes its input-monitoring characteristics and output-contact ratings separately for the same relay.
Phoenix Contact
Read both sides of the datasheet.
Does a phase monitoring relay replace an overload relay?
No.
They observe different problems.
A phase monitoring relay primarily watches characteristics of the supply network according to its available functions.
A motor overload relay responds to the motor-current conditions for which it is designed.
A circuit breaker provides its specified overcurrent and short-circuit protection.
Depending on the machine, all three functions may be relevant.
Do not remove motor overload protection merely because a phase relay has been added.
Does it replace an MCCB or MCB?
No.
A monitoring relay does not provide the fault-interruption capability of a circuit breaker.
It normally uses a small control output to cause another device to act.
If a short circuit occurs, the correctly selected protective device still has to interrupt the fault.
This is why panel drawings should show the phase relay as part of the control and monitoring architecture, not as a replacement for power-circuit protection.
Phase monitoring can help troubleshooting too
A monitoring relay is not only useful when it trips the machine.
Its status indication can provide a clue about the incoming supply.
Current Phoenix Contact monitoring relays, for example, use LEDs to indicate operating voltage, output state and fault conditions on applicable models.
Phoenix Contact
The exact indication varies by device, but this can help maintenance distinguish between:
"The starter is faulty"
and
"The starter is being deliberately inhibited because the incoming supply is abnormal."
That distinction can shorten troubleshooting.
A common mistake after generator or utility changeover
Suppose a facility normally operates correctly on utility power.
After changing to another source, a three-phase machine refuses to start.
Before replacing the contactor or control relay, check the supply conditions.
Are all phases present?
Is the phase sequence correct?
Is the voltage inside the monitored range?
Is the monitoring relay indicating a fault?
A different source or reconnection can expose sequence or voltage conditions that were not present before.
The monitoring relay may simply be preventing operation as designed.
Another common mistake: adjusting thresholds until the machine runs
A technician finds the phase relay in fault state and widens the voltage or asymmetry threshold until the contactor energizes.
The machine starts.
The underlying supply condition has not necessarily been fixed.
Adjustable thresholds exist so the monitoring function can be matched to the electrical design and equipment requirements—not to provide a convenient bypass for a recurring fault.
Measure the three-phase supply first.
If the voltage or imbalance is genuinely abnormal, investigate the source.
What to check before buying a phase monitoring relay
Start with the electrical system and required functions.
Record:
Three-phase system voltage
Frequency
Whether neutral is present
Phase-loss monitoring requirement
Phase-sequence monitoring requirement
Overvoltage requirement
Undervoltage requirement
Phase-asymmetry requirement
Required threshold adjustment
Required response delay
Output-contact arrangement
Control load connected to the output
Reset behaviour required by the control system
Also establish whether the monitoring relay takes its operating power directly from the measured supply or requires a separate supply.
Do not infer this from another product.
What to send when requesting a phase relay from INTEKS
For replacement work, send a clear photograph of the complete existing relay label and its terminal wiring before authorized disconnection.
Include the system voltage and explain what the relay currently controls.
For a new panel, specify the supply voltage and the conditions that need monitoring: phase failure, phase sequence, asymmetry, overvoltage, undervoltage or a defined combination.
INTEKS supplies industrial electrical protection, control and automation components for panel builders, contractors, maintenance teams and industrial users. A phase monitoring relay should be selected around the supply conditions and required control response rather than from the label "phase failure relay" alone.
Frequently asked questions
What does a phase monitoring relay do?
It monitors selected conditions in a three-phase electrical supply. Depending on the model, these can include phase failure, phase sequence, voltage asymmetry, undervoltage, overvoltage or frequency. When a monitored condition moves outside the permitted state, the relay changes its output.
Siemens Press
+1
Can a phase monitoring relay prevent a motor from running backwards?
A relay with phase-sequence monitoring can detect incorrect incoming phase order. When correctly incorporated into the control circuit, its output can prevent the starter from being enabled until the sequence is corrected. It does not physically swap the phases unless a specifically designed system provides that function.
Is phase failure protection the same as motor overload protection?
No. Phase monitoring observes the supply conditions supported by the relay. Motor overload protection responds to motor-current conditions. One should not automatically be substituted for the other.
Why does a phase monitoring relay have a time-delay setting?
A delay can prevent selected short-duration supply disturbances from unnecessarily stopping equipment. Whether the delay applies to every monitored fault depends on the relay. Some devices treat phase loss or wrong sequence as immediate conditions.
Siemens Press
+1
Why is the phase relay showing healthy voltage but the motor still will not start?
The problem may be elsewhere in the control or power circuit. Check the relay's actual output state, contactor control voltage, overload relay, interlocks, emergency-stop circuit and upstream protection rather than assuming a healthy phase monitor proves the entire starter is healthy.
