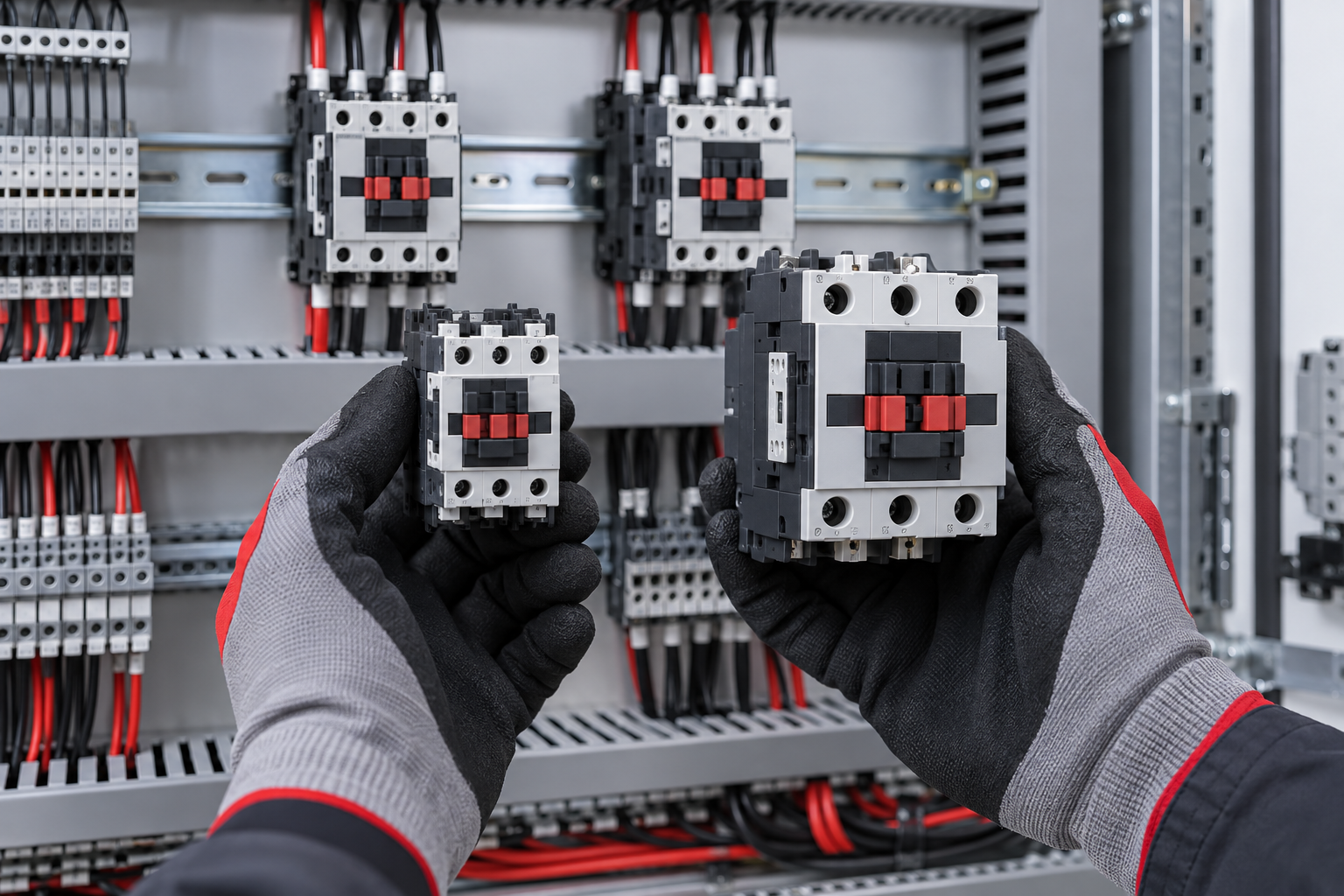

Quick technical guide: This article explains ac-1 vs ac-3 contactors: why the same contactor can have different current ratings for panel builders, contractors, maintenance teams and industrial electrical buyers.
A contactor label can be confusing at first.
You may find one current rating for AC-1 and another for AC-3 on the same device. That does not mean one of the figures is optional or that the manufacturer is giving two versions of the same specification.
The ratings describe different operating conditions.
For someone buying a replacement contactor, building a control panel, or selecting components for a motor, understanding that distinction is more useful than simply choosing the highest ampere figure printed on the device.
What is a utilization category?
A contactor does not experience the same electrical stress with every type of load.
Switching an electric heater is different from starting and stopping a motor. The load and the conditions under which the contacts open and close affect the current the contactor must make and break.
Utilization categories provide a way of defining those operating conditions.
This is why the load should be identified before using the current rating to select a contactor.
What does AC-1 mean?
AC-1 is associated with non-inductive or slightly inductive AC loads.
A common example is resistive heating.
According to Schneider Electric's explanation of standardized utilization categories, AC-1 applies to AC loads with a power factor of at least 0.95.
Schneider Electric
For these loads, switching conditions are relatively straightforward compared with motor starting.
That matters because a contactor may have a higher permissible operational current under AC-1 conditions than it has under a motor-duty category.
What does AC-3 mean?
AC-3 is commonly encountered when selecting contactors for squirrel-cage motors.
A motor does not simply draw its normal running current the instant it starts.
During starting, the contactor has to close while a much larger current is present. Schneider Electric notes that under AC-3 operation, starting current can be roughly five to seven times the motor's rated full-load current. When the contactor opens during normal operation, it breaks the motor's rated full-load current.
Schneider Electric
That operating duty explains why the AC-3 rating deserves attention when a contactor will be used for normal motor starting and stopping.
Why can the same contactor show different AC-1 and AC-3 ratings?
Consider what the contacts experience.
With a resistive load, the current behaviour around switching is relatively mild.
A motor places a different demand on those same contacts, particularly when it starts. Contact erosion, arcing and switching stress therefore depend on how the contactor is being used.
The result is something electrical buyers regularly encounter: one physical contactor can have different operational current ratings for different utilization categories.
A higher AC-1 rating should not be read as the motor rating.
For example, Schneider Electric publishes contactors that carry separate AC-1 and AC-3 operational current values on the same product datasheet.
iPortal
The correct figure is the one associated with the intended application.
A common purchasing mistake
Imagine an existing motor contactor needs replacement.
The buyer removes the old unit, notices an ampere value on the label and asks a supplier for another contactor with the same current.
There is still information missing.
Was that current value specified for AC-1 or AC-3?
What is the motor rating?
What voltage does the power circuit use?
What voltage does the contactor coil require?
Without those details, two contactors that look suitable on the shelf may behave very differently in the actual control circuit.
Coil voltage matters too
The power contacts and the contactor coil perform different jobs.
The main contacts switch the load. The coil operates the contactor.
When replacing a contactor, matching the power-side rating while ignoring the control voltage can result in the wrong component being ordered.
Schneider Electric's contactor selection guidance lists rated power-circuit current, power-circuit voltage, control or coil voltage, number of poles, load type/utilization category and auxiliary contacts among the relevant selection factors.
Schneider Electric
So a request such as "I need a 32A contactor" may not contain enough information to identify the correct device.
What should you check before ordering a contactor?
Start with the load.
If it is a motor, record the motor nameplate information and understand how it is being switched. If it is a heater or another resistive load, state that clearly as well.
Then check the supply voltage and required operational current.
The coil voltage should be confirmed separately. A control panel may use a coil voltage that is different from the voltage being switched by the main contacts.
Check the required number of poles and any auxiliary NO or NC contacts used by the control circuit.
Finally, confirm the applicable utilization category and compare the manufacturer's technical data for that exact contactor.
This approach is much safer than comparing ampere markings alone.
AC-3 does not cover every motor switching condition
Another useful distinction appears when a motor is subjected to more demanding switching.
AC-3 relates to squirrel-cage motors under normal starting and stopping conditions. Applications involving operations such as plugging, reversing or inching can fall under different utilization categories and impose more severe switching conditions.
That distinction is important in machinery where the motor is repeatedly stopped, reversed or jogged.
The word "motor" by itself does not completely describe the duty.
Replacing an existing contactor
For maintenance teams, the fastest way to reduce ordering errors is to collect the complete information before contacting a supplier.
Take a clear photo of the full contactor label and product reference. Record the motor nameplate if the contactor controls a motor. Note the coil voltage and identify any auxiliary contact arrangement connected to the control circuit.
If the old component failed, do not automatically assume an identical-looking replacement solves the underlying problem.
The cause of failure may need investigation, particularly if there has been overheating, repeated nuisance operation, damaged contacts or an abnormal motor condition.
Buying contactors for a new control panel
A new panel gives the designer an opportunity to select the contactor around the actual application instead of copying an existing part number.
The load type, operating current, switching duty, control voltage and coordination with other protective and control devices should be established as part of the design.
Manufacturer documentation should then be used to verify the final device.
INTEKS supplies industrial electrical control and protection components, including contactors, for panel builders, contractors, maintenance teams and industrial buyers. When requesting a contactor, providing the application details rather than only an ampere figure makes product identification much more reliable.
Frequently asked questions
Is AC-1 current the same as AC-3 current?
No. They represent different utilization conditions. A contactor can therefore carry different rated operational currents for AC-1 and AC-3 service.
Which category is commonly used for motor contactors?
AC-3 is commonly used for normal starting and stopping of squirrel-cage motors. More severe motor switching duties may require another utilization category.
Schneider Electric
Can I select a motor contactor using only the motor's kW rating?
The motor rating is useful, but it should not be the only information checked. Supply voltage, motor current, utilization category, coil voltage, switching duty and the manufacturer's selection data also matter.
Why does coil voltage need to be checked separately?
The coil belongs to the control circuit that operates the contactor. Its required voltage can differ from the voltage switched by the main power contacts.
What information should I send when asking INTEKS for a contactor?
Send the load type, operating voltage, motor kW and nameplate current where applicable, required coil voltage, number of poles, utilization category if known, auxiliary-contact requirements and the existing product reference when replacing a device.
